Do any of you have a stupid simple wiring diagram with wire color codes for a 56 Fairlane? I started taking some of the spaghetti out from under my dash and may have gone a little too far. I've replaced the starting circuit with new wires, the old ones were a fire waiting to happen. I pretty well stayed away from head and taillights but have a few wires that seem to go nowhere. I've also had a long going problem with the light wiring. I'm using some one wire lights behind the grill for turn signals. They were hooked to the existing turn signal wires and I made sure the parking light wires were terminated. Problem is brake lights turn on the front turn lights. I vaguely remember a plug could be switched on the multi plug junction block and cause this but that's about it. If you can help you can EMAIL them to me at 56vicky@comcast.net Chuck

Y's guys rule!
Looking for McCullouch VS57 brackets and parts. Also looking for 28 Chrysler series 72 parts. And early Hemi parts.

MoonShadow, 292 w/McCulloch, 28 Chrysler Roadster, 354 Hemi)
Manchester, New Hampshire

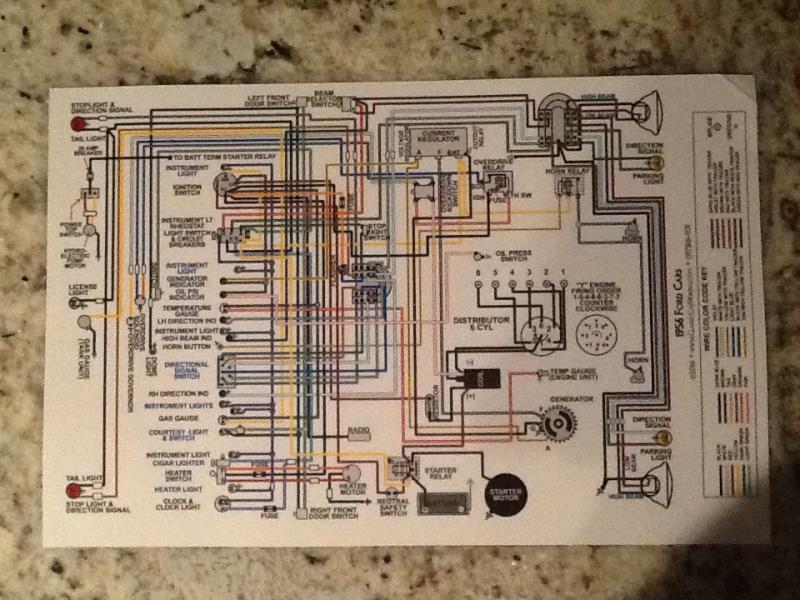

I purchased a beautiful laminated complete wiring diagram from www.ClassicCarWiring.com (917) 861-9131 and it's saved me more times than I can count. All colors of wires are listed, solids and with tracers, fuses, connections, etc. Was less than $20.00.

56 Vic, B'Ville 200 MPH Club Member, So Cal.

X2 on the classic wiring. I can even read it without my glasses. I have one for each of my three cars..

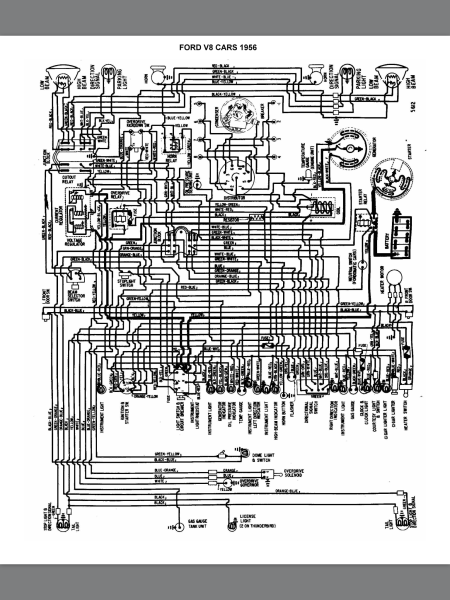

Here's a black and white diagram.


Rick - West Australia
Do Y Blocks Downunder run upside down? Gravity Sucks!!

Sorry about the resolution it seems blurred to me . If you send me a personal msg I'll email a higher resolution image for you.

Rick - West Australia
Do Y Blocks Downunder run upside down? Gravity Sucks!!

Thanks Rick, my email is 56vicky@comcast.net.
